Subcutaneous Micro Solar Cell with LED Patch: A Wirelessly Powered Implantable Sensor for Continuous Healthcare Monitoring

    A new breakthrough combines a flexible micro solar cell implanted under the skin with an external Micro LED patch to overcome the battery limitation of implantable medical devices.

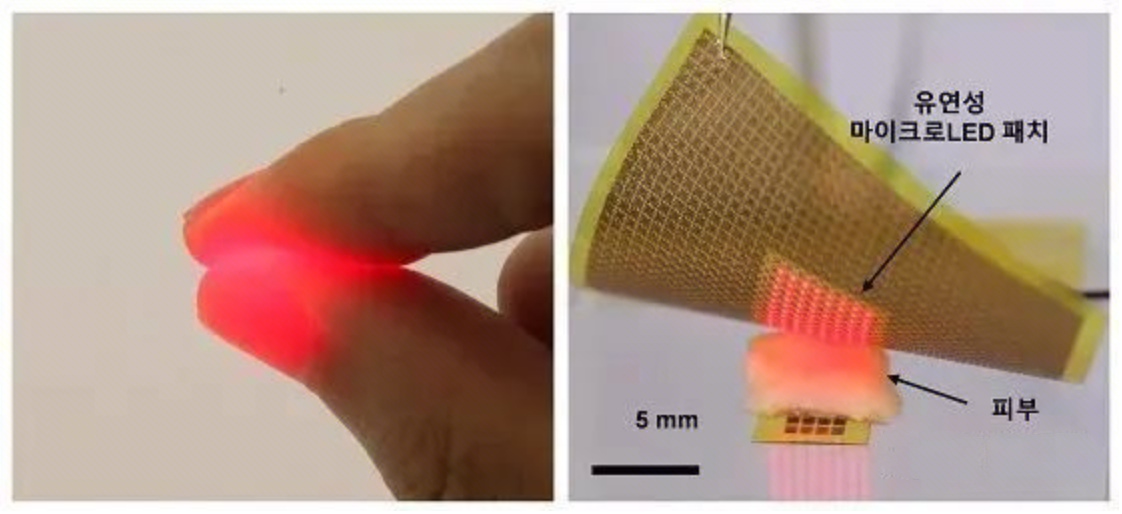

    The micro solar cell harvests energy from ambient light, but its output drops sharply indoors or at night. To solve this, the LED patch – which attaches comfortably to the skin – emits red light (670 nm) that penetrates deeply through tissue, delivering reliable optical power to the subcutaneous solar cell. This hybrid approach ensures continuous, daylight‑independent energy supply.



Key functions demonstrated in a prototype implantable sensor:



· Self‑powered temperature monitoring – operates at an average power of just ~30 µW, with the micro solar cell providing up to 2.75 mW under sunlight and ~0.7 mW under indoor light.

· Wireless data transmission via Bluetooth Low Energy (BLE) – sends physiological data (e.g., local inflammation or post‑surgical infection alerts) to an external receiver.

· Long‑term autonomy – the system survives 12 days of simulated use with only 1 hour daily illumination, and can fully recover from a depleted battery when re‑exposed to light.



    By eliminating the need for battery‑replacement surgeries, this technology enables truly maintenance‑free implantable devices – from cardiac pacemakers to chronic disease monitors – while enhancing patient comfort and safety.
