GaAs cell-4
YIM
| Quantity: | |
|---|---|

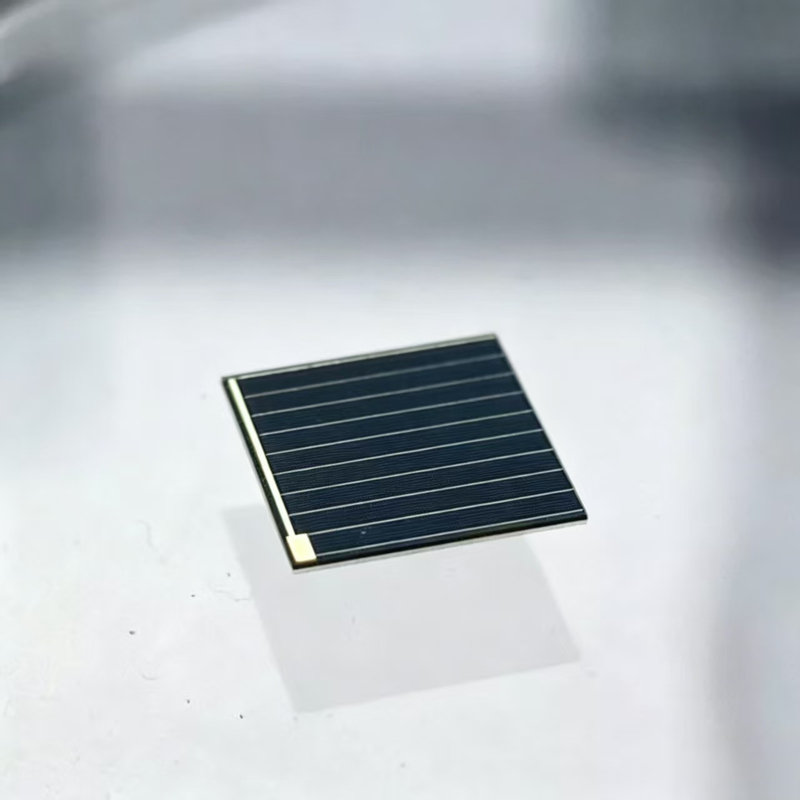

High Efficiency Solar Cell Wafers
Efficient solar micro component technology reply on the space power products, the conversion efficiency is 30 %. The thickness of the component is less than 1 mm, and have good tolerance to high energy density and special environment, light quality, preparation into various shapes of the structure of the miniature solar cell module, which can be used in wearable devices and micro devices of power supply continuously, moreover, micro regional composite can be realized.
Features：
Unprecedented Power-to-Size Ratio
Superior Spectral Sensitivity & Low-Light Harvesting
Ready-to-Surface-Mount (SMT Compatible)
Emphasize that it can still provide continuous trickle charging in cloudy conditions, early morning/late afternoon, and indoor diffuse light, thereby extending the lifespan of maintenance-free devices.
Specification
Support customization in more size, if needs please feel free to contact us.
| Dimensions（mm） | Solar cell type | Pmpp（mW) | FF（%） | Eff | Voc(V) | Isc（mA） | Jsc（mA/cm） | AM0，25℃ | weigh |
| 2*2 | GaAs solar cell bare | 1.64 | 87 | >30% | 2.7 | 0.70 | 17.5 | 135.3mW/cm2 | 0.005g |

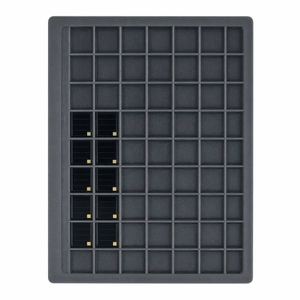

| 3*3.8 | GaAs solar cell bare | 4.69 | 87 | >30% | 2.7 | 2.00 | 17.5 | 135.3mW/cm2 | 0.01g |
| 5*5 | GaAs solar cell bare | 10.28 | 87 | >30% | 2.7 | 4.38 | 17.5 | 135.3mW/cm2 | 0.03 g |
| 5*10 | GaAs solar cell bare | 20.55 | 87 | >30% | 2.7 | 8.75 | 17.5 | 135.3mW/cm2 | 0.05 g |
| 8.1*8.4 | GaAs solar cell bare | 27.97 | 87 | >30% | 2.7 | 11.91 | 17.5 | 135.3mW/cm2 | 0.06 g |

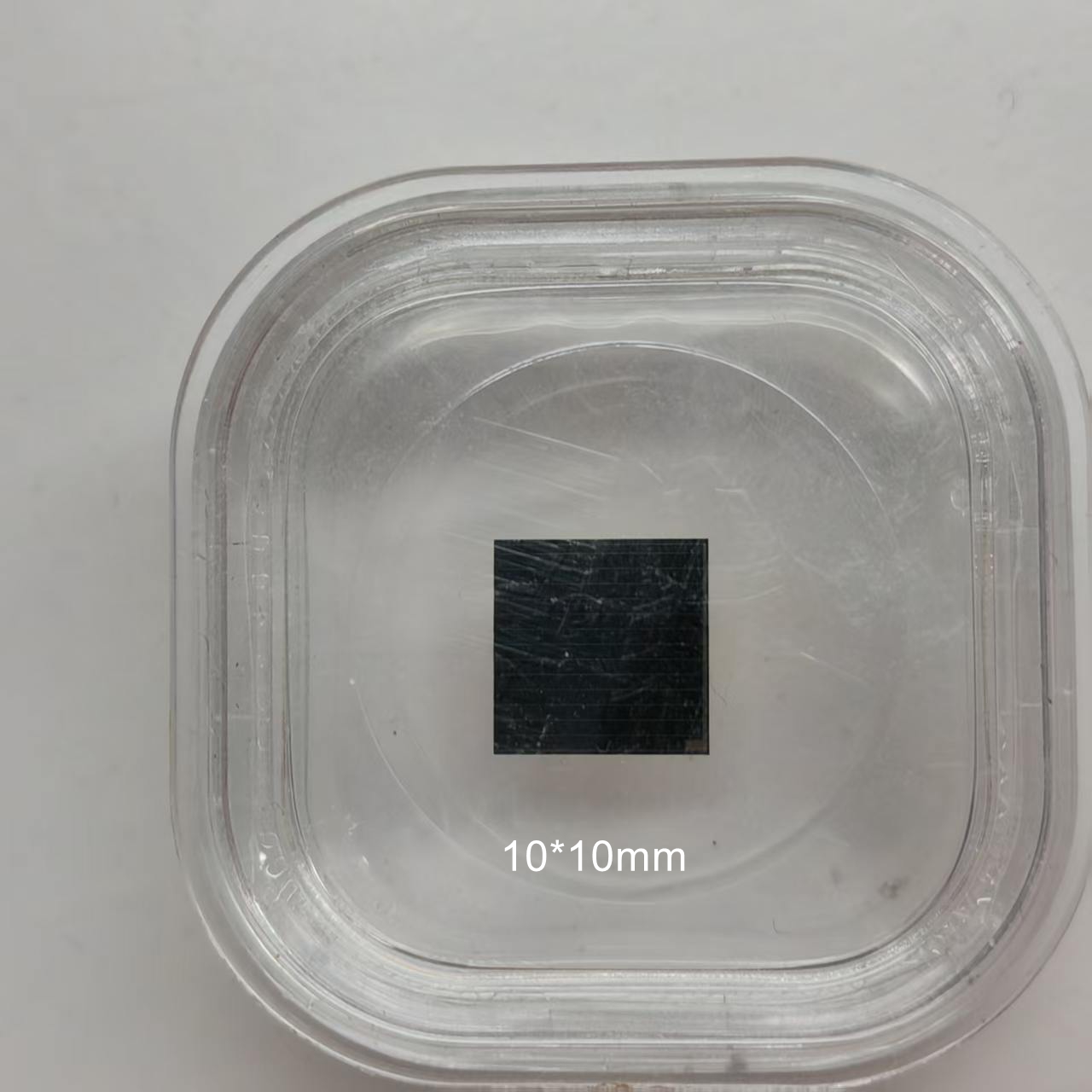

| 10*10 | GaAs solar cell bare | 41.11 | 87 | >30% | 2.7 | 17.50 | 17.5 | 135.3mW/cm2 | 0.10g |
| 7.5*15 | GaAs solar cell bare | 46.25 | 87 | >30% | 2.7 | 19.69 | 17.5 | 135.3mW/cm2 | 0.11 g |

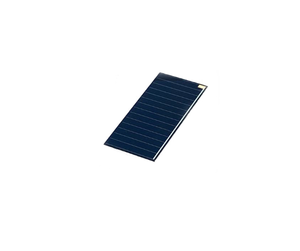

| 12*21 | GaAs solar cell bare | 103.59 | 87 | >30% | 2.7 | 44.10 | 17.5 | 135.3mW/cm2 | 0.33g |
| 17.5*21 | GaAs solar cell bare | 151.07 | 87 | >30% | 2.7 | 64.31 | 17.5 | 135.3mW/cm2 | 0.38g |
| 20*20 | GaAs solar cell bare | 164.43 | 87 | >30% | 2.7 | 70.00 | 17.5 | 135.3mW/cm2 | 0.40g |
| 22*24 | GaAs solar cell bare | 217.05 | 87 | >30% | 2.7 | 92.40 | 17.5 | 135.3mW/cm2 | 0.53g |
| 20*30 | GaAs solar cell bare | 246.65 | 87 | >30% | 2.7 | 105.00 | 17.5 | 135.3mW/cm2 | 0.60g |
| 22*34 | GaAs solar cell bare | 307.48 | 87 | >30% | 2.7 | 130.90 | 17.5 | 135.3mW/cm2 | 0.75g |
