In the aerospace field, the energy supply of satellites is crucial, and the efficiency of solar panels as the main energy acquisition device directly affects the performance and operational life of satellites. CubeSats and Starlink satellites represent different types of satellite applications, each with its own characteristics in terms of solar panel technology and efficiency.

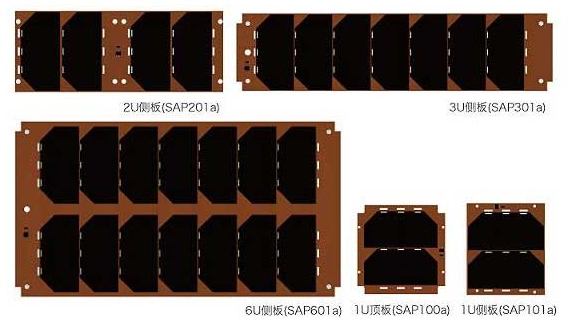

Efficiency of CubeSatellite Solar Panels
Technical selection and efficiency performance
CubeSats have extremely high requirements for the efficiency and space utilization of solar panels due to their limited volume. Currently, many cube satellites use triple junction gallium arsenide (GaAs) solar cells. This type of battery is composed of multiple layers of semiconductor materials with different bandgap widths, which can more effectively utilize solar light of different wavelengths, thereby improving the photoelectric conversion efficiency. For example, EnduroSat's 3U solar panel uses three junction space grade solar cells, with an initial efficiency of over 29.5%. After 5 years of operation in low Earth orbit (LEO), the cell efficiency can still remain above 29%. The gallium arsenide thin film solar technology of Alta Devices, a subsidiary of Hanergy in the United States, achieved a world record with a single junction solar cell efficiency of 29.1%. These high-efficiency battery technologies provide the possibility for CubeSats to obtain more electricity on a limited surface area.
Factors affecting efficiency
The efficiency of cubic satellite solar panels is influenced by various factors. From the perspective of space environment, satellites are exposed to radiation from cosmic rays and high-energy particles in orbit, which may cause damage to the lattice structure of battery materials and subsequently reduce battery efficiency. For example, in high radiation environments, the performance of some solar cells will gradually decline. Temperature is also a key factor. In space, the surface temperature of satellites changes dramatically. When the battery temperature rises, its internal characteristics such as electron mobility change, resulting in a decrease in open circuit voltage and overall efficiency. In addition, changes in satellite attitude cause the angle at which solar panels receive sunlight to constantly change. When sunlight shines at low angles, some of the light is reflected and cannot be effectively absorbed and converted, resulting in efficiency losses.
Efficiency of Starlink satellite solar panels
Technological development and efficiency improvement
As the key for SpaceX to build the global satellite Internet, the solar panel technology of the satellite chain is also developing. Early Starlink satellites had relatively limited solar panel area and efficiency, but with technological advancements, the solar panel area gradually increased and efficiency significantly improved. The solar panel area of the v1.5 Starlink satellite in 2020 is about 30 square meters, with a bandwidth of about 30Gbps; By 2023, the V2mini Starlink satellite will have a solar panel area of approximately 104.96 square meters and an increased bandwidth of around 80Gbps. The future plan is to launch full-size v2 Starlink satellites using starships, with each satellite's solar panel area expected to exceed 210 square meters. Large scale solar panels combined with continuously improving battery technology enable Starlink satellites to obtain more electricity to support the operation of their communication equipment and other devices. In terms of efficiency, the commonly used polycrystalline silicon solar panels in modern spacecraft can achieve a conversion efficiency of over 15%, while Starlink satellites may use more efficient polycrystalline silicon or gallium arsenide materials. According to data, a 30 square meter solar panel with an efficiency of about 18% can provide over 6000 watts of power in low Earth orbit, providing necessary energy security for Starlink satellites to achieve global communication coverage.
Efficiency optimization strategy
In order to further improve the efficiency of solar panels, SpaceX has adopted a series of optimization strategies. In satellite design, precise orbit control and attitude adjustment are used to ensure that the solar panels face the sun for as long and stably as possible, reducing light loss caused by angular deviation. In the manufacturing process of solar panels, we continuously improve the production process, increase material purity and battery integration, reduce internal resistance, and minimize energy loss during transmission and conversion. At the same time, the Starlink satellite system has also made great efforts in energy management, optimizing hardware configuration and software algorithms to reduce unnecessary energy consumption and ensure that the electricity generated by solar panels can be efficiently utilized.
Comparison of the two and industry outlook
CubeSatellite solar panels focus on achieving high conversion efficiency in limited space to meet their specific miniaturization mission requirements, such as scientific exploration, technological verification, etc. On the other hand, Star Link satellite solar panels focus on providing sufficient energy for satellite communication systems and realizing global Internet access services through area expansion and efficiency improvement on the basis of large-scale deployment. With the continuous advancement of materials science and aerospace technology, the efficiency of solar panels on other satellites such as CubeSats and Starlink Satellites is expected to be further improved in the future. New battery materials and structures may emerge, such as promising technologies like perovskite solar cells, which are expected to be applied in the aerospace field, driving satellite energy supply technology to new heights and providing a solid energy foundation for more complex and long-term space missions.
